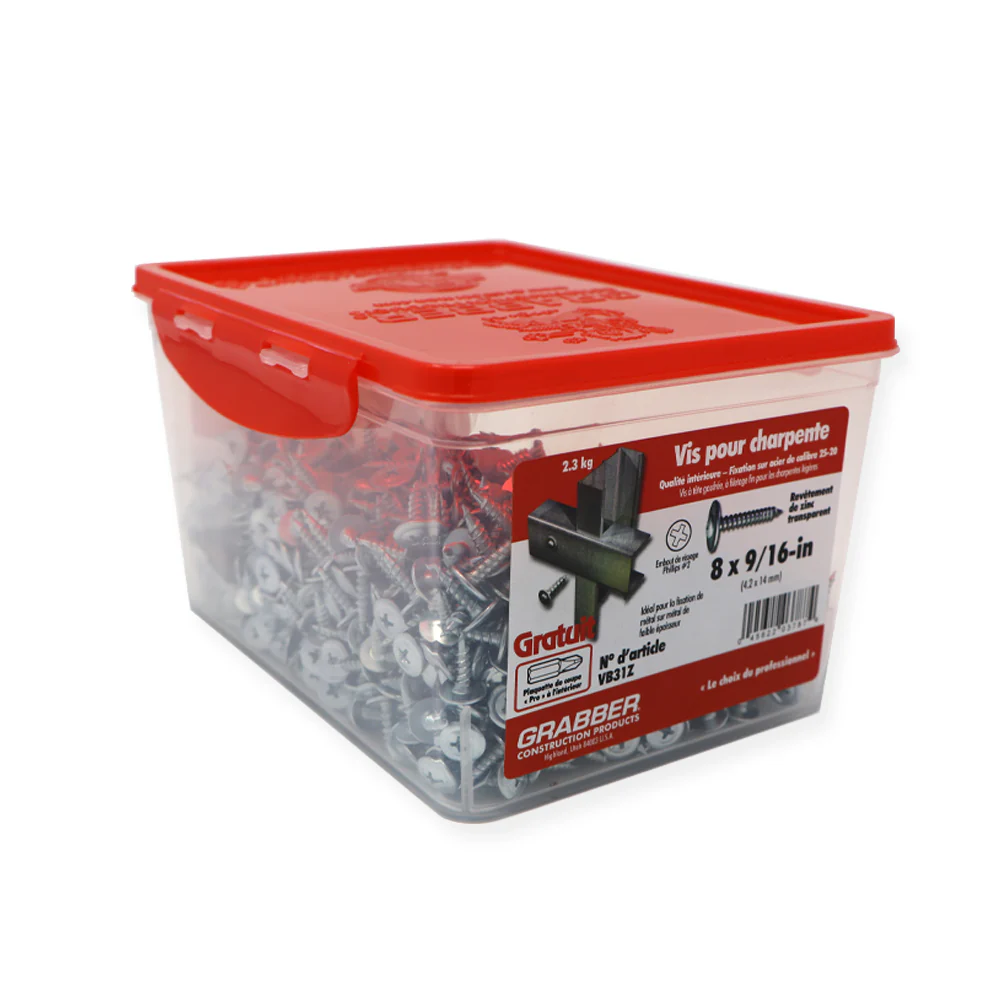

Grabber Wafer Framing Screws - Fine Thread - Clear Zinc

Used for light gauge metal applications where low profile head exposure is desired. Super sharp 23° Streaker® point means quick and easy penetration into metal (25-20 ga.), while wafer head provides greater bearing surface. The right screw for K-lath installation.

Installation Guidelines

Use a standard screw gun with a depth-sensitive nose piece. Suggested screw gun specification for optimal performance - 4 amps minimum and RPM range of 0 to 4,000.

• The wafer head is fully seated when the head is flush with the work surface.
• Overdriving my result in fastener failure or strip out of the work surface.
• The fastener must penetrate beyond the metal three full thread pitches.

All GRABBER® screw products are manufactured in facilities that are ISO 9002 and ISO 14001 certified and approved.
