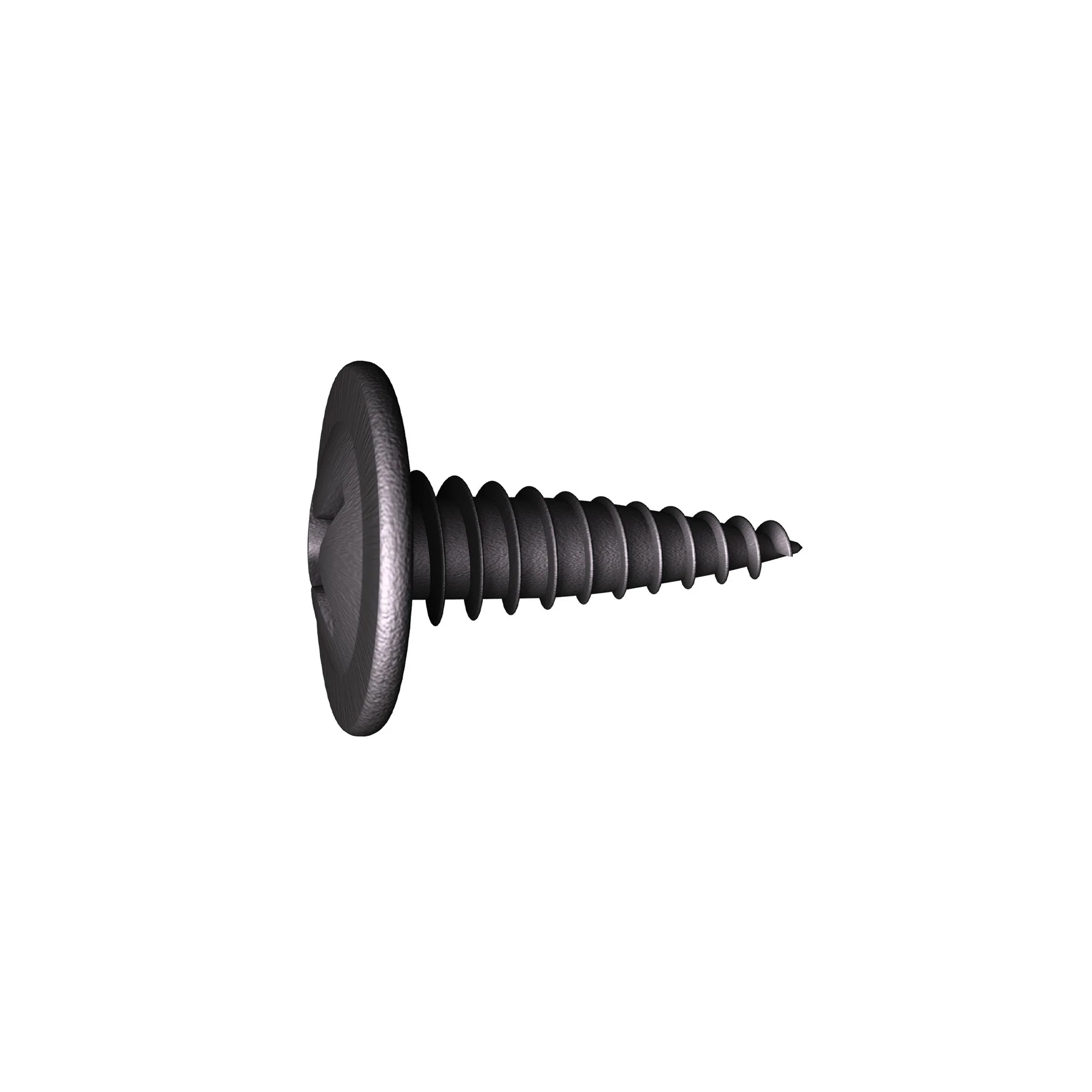

Grabber Wafer Framing Screws - Fine Thread - Vector Point Phosphate
Designed for light gauge metal 18-30 mil (25-20ga) applications where low profile head is desired. Super sharp Vector™ point means quick and easy penetration into metal, while the modified truss head provides greater bearing surface. The right screw for K-lath installation and framing applications.
Installation Guidelines
Use a standard screw gun with a depth-sensitive nose piece. Suggested screw gun specification for optimal performance - 4 amps minimum and RPM range of 0 to 4,000.
- The wafer head is fully seated when the head is flush with the work surface.
- Overdriving my result in fastener failure or strip out of the work surface.
- The fastener must penetrate beyond the metal three full thread pitches.
All GRABBER® screw products are manufactured in facilities that are ISO 9002 and ISO 14001 certified and approved.
