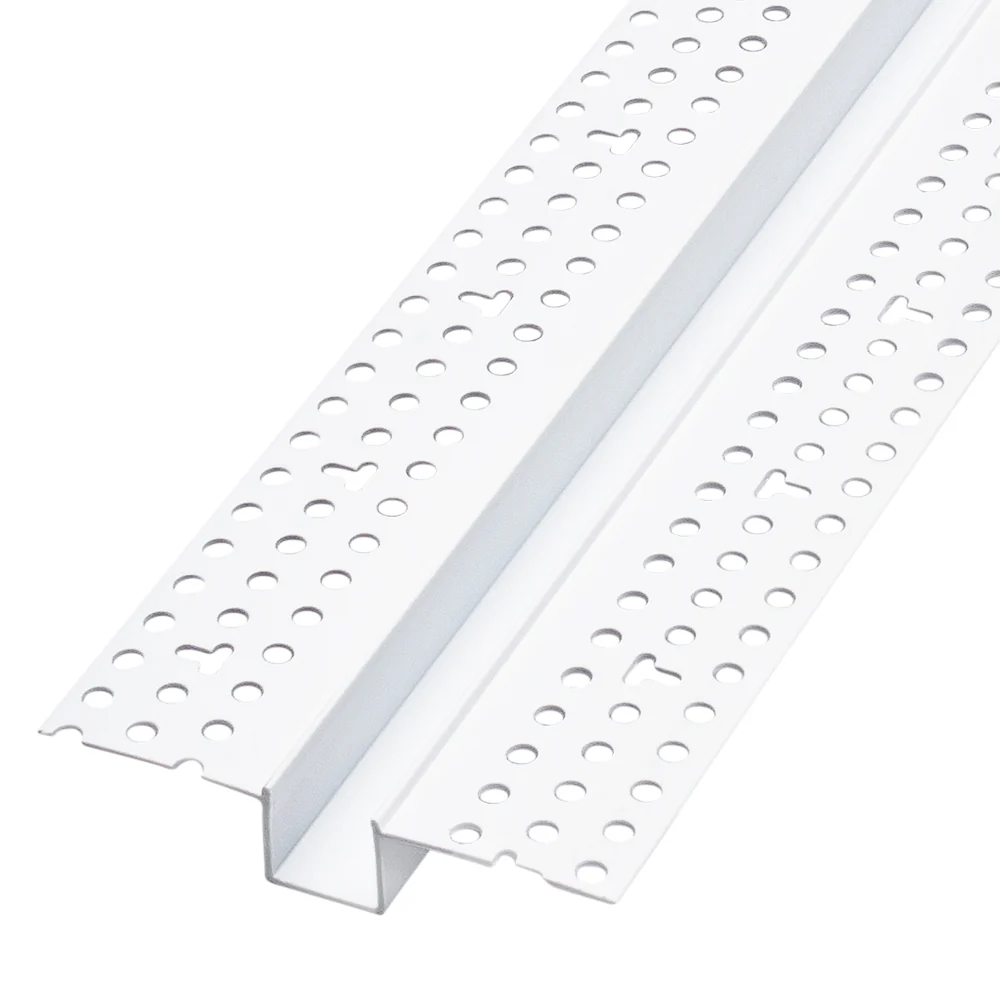

Trim-Tex Architectural Reveal Bead

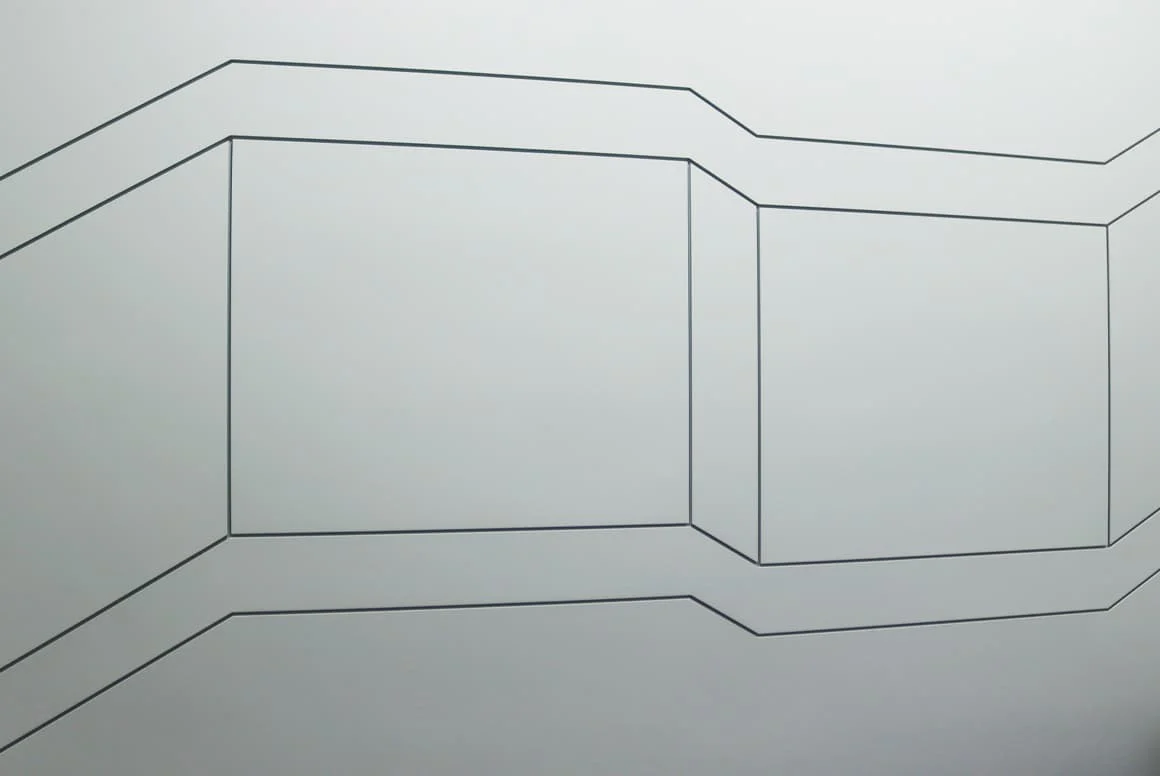

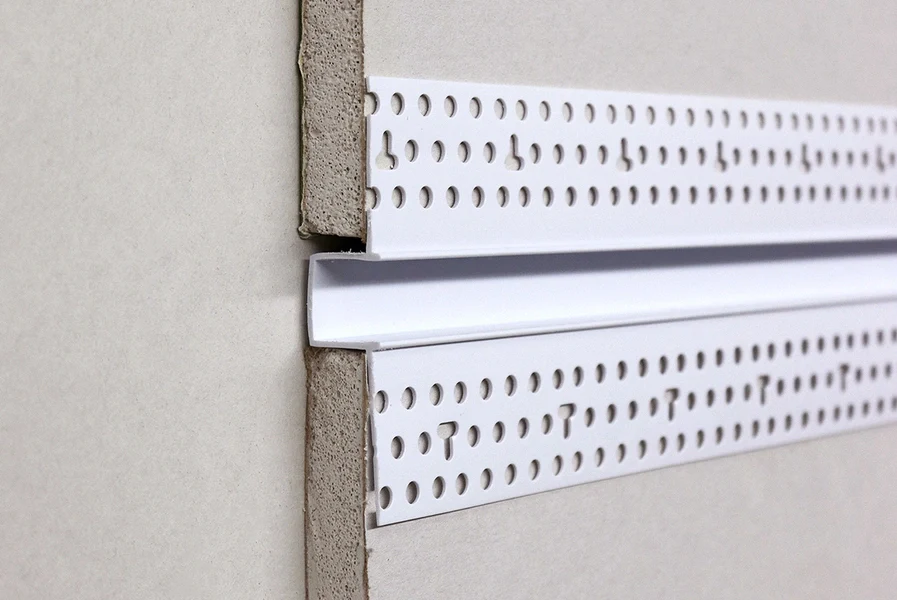

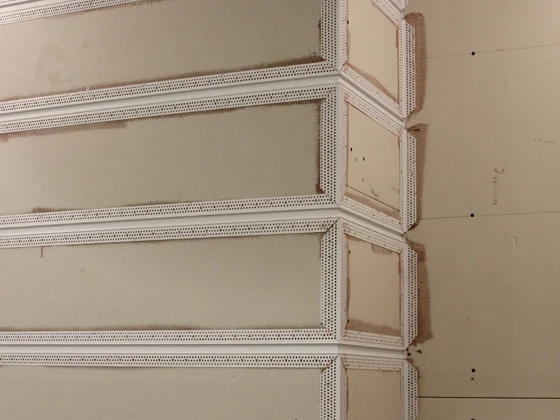

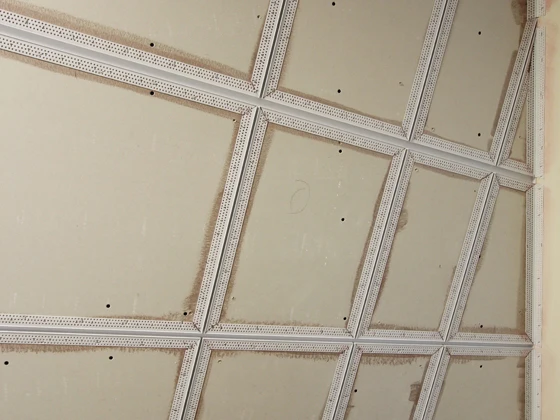

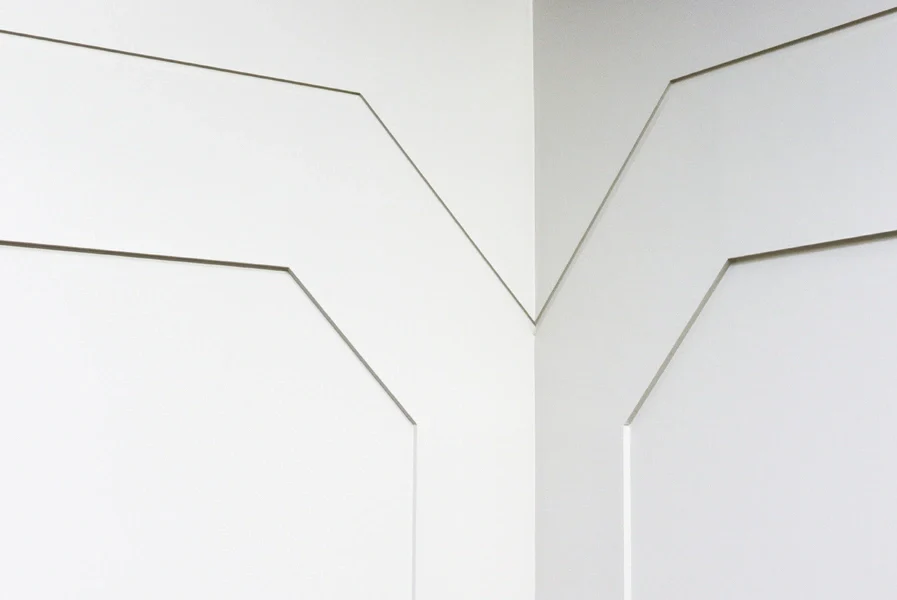

Reveals are a great way to add interesting design elements to a bare wall — they give any room in which they’re installed a sleek, modern and unique quality. Trim-Tex’s Architectural Reveal Bead creates the sharpest, cleanest aesthetic reveals in drywall you can get, with 1⁄8" of built-in expansion control.

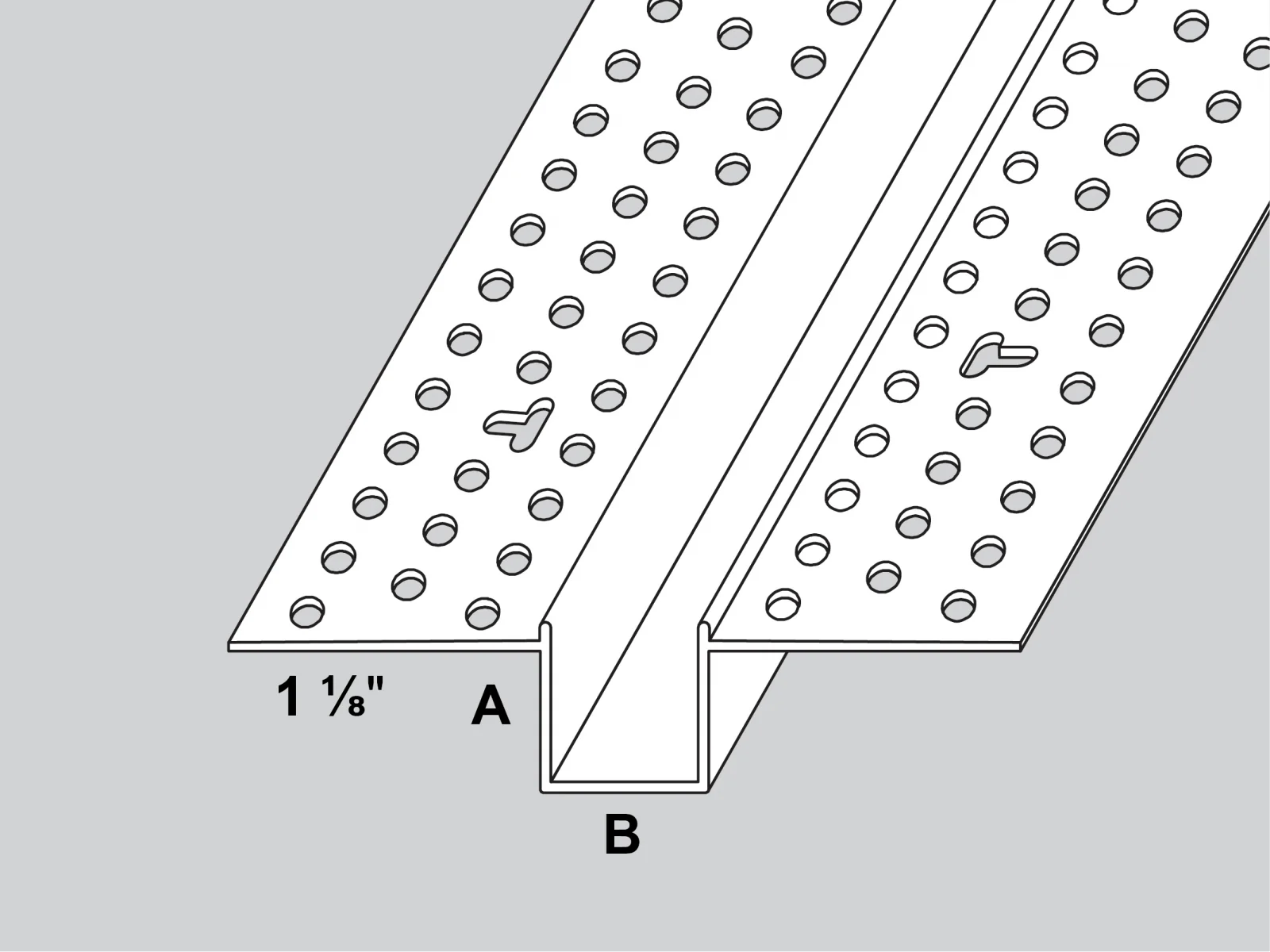

Stock # - Size - Pieces Per Box

  • AS5150 - 1/4" x 1/4" - 25
  • AS5130 - 3/8" x 3/8" - 20
  • AS5160 - 1/2" x 1/4" - 20
  • AS5110 - 1/2" x 1/2" - 20
  • AS5210 - 1/2" x 3/4" - 15
  • AS5310 - 1/2" x 1" - 15
  • AS5315 - 1/2" x 2" - 10
  • AS5320 - 5/8" x 1/2" - 15
  • AS5325 - 5/8" x 5/8" - 15
  • AS5330 - 5/8" x 3/4" - 15
  • AS5340 - 5/8" x 1" - 12

Features

  • Create stunning reveals
  • Easy to install
  • Durable & resilient

Installation Guide

Architectural Reveal Bead Installation Guide-1

Reveal Radius Chart

Submittal Sheets

Architectural Reveal Bead Submittal Sheet R1

SDS

SDS - Rigid Vinyl Drywall Accessories 01Aug2018



"As5110 Architectural Reveal Bead" (https://skfb.ly/owZAv) by Trim-Tex is licensed under Creative Commons Attribution (http://creativecommons.org/licenses/by/4.0/).

Select Stock # - Size - Length
Select Package Quantity
From $2.20

Original: $6.29

-65%
Trim-Tex Architectural Reveal Bead—

$6.29

$2.20
